PRODUCTS / AUXILIARY EQUIPMENT
The feeding, filtration and downstream equipment that completes an extrusion line — accurate dosing, clean melt and reliable material handling around the extruder.
Gravimetric and volumetric feeders for accurate main and additive dosing across multiple components.
Twin-screw side feeders, force feeders and bi-directional feeders for fillers, fibers and low-bulk-density additives downstream of the main feed.
Hydraulic and manual screen changers to filter the melt and maintain product cleanliness during continuous running.
Atmospheric and vacuum venting sections for moisture, monomer and volatile removal.
Extruder gearboxes, segmented screw elements and barrels in a range of wear-resistant materials.
Strand baths, air cooling, vibrating screens and pellet classifiers for downstream handling.
Alongside complete machines we manufacture and stock the wear and auxiliary parts an extrusion line consumes, so a plant can be kept running and older machines rebuilt rather than replaced.
| Part | Notes |
|---|---|

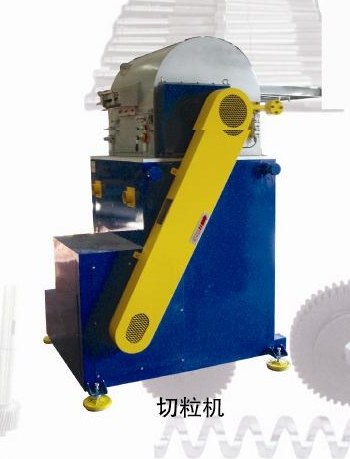

| Strand pelletizer | Gear-drive and belt-drive types, with feed roll and rotor sized to strand count |
| Pelletizer cutter head | Die-face knife assemblies for hot-face, water-ring and eccentric cutting |
| Vertical cramming feeder | Forced feeding of low-bulk-density powders, fibres and flake |
| Barrel sections | Figure-eight bore, #45 steel body with a-101 wear-resistant liner at HRC 60–64 |
| Die plate and breaker plate | Hole pattern matched to output, pellet size and cutting method |
| Barrel heating rings | Zone heaters wired for solid-state relay control |
| Screw elements and shafts | Conveying, kneading and mixing elements in W6Mo5Cr4V2 at HRC 62–64 on 45CrNiMoVA splined shafts |
| Reduction gearbox | Torque-distribution gearbox with precision-ground hardened teeth and imported bearings |

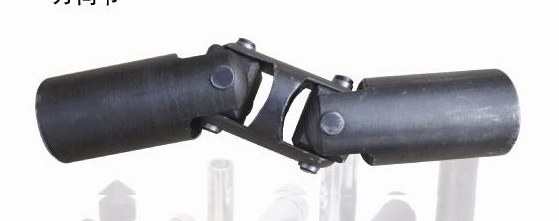

| Universal joint shafts | Drive couplings between motor, gearbox and screw shafts |

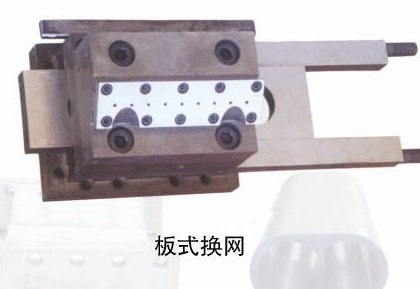

| Plate-type screen changer | Hydraulic or manual; screen changes complete in a few minutes |

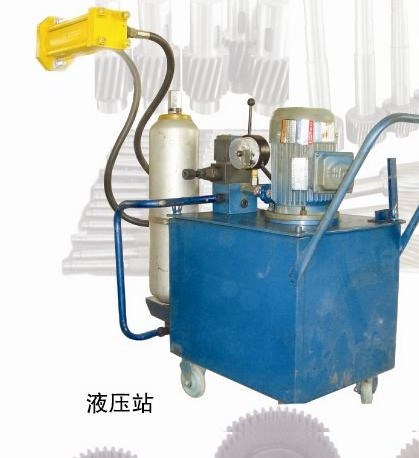

| Hydraulic station | Power pack for screen changers and die-face equipment |
| Vibrating sieve and classifier | Removes fines and oversize before packing |

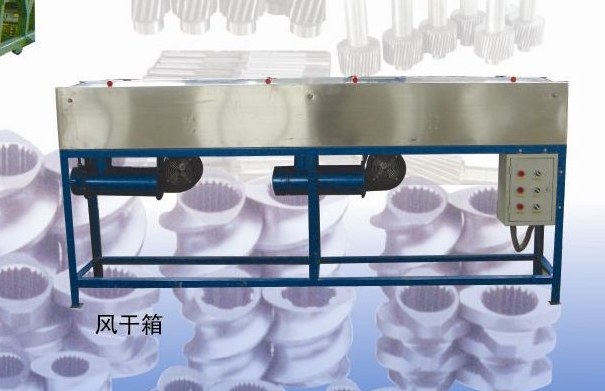

| Air-drying box | Surface-water removal from pellets after water-cooled cutting |

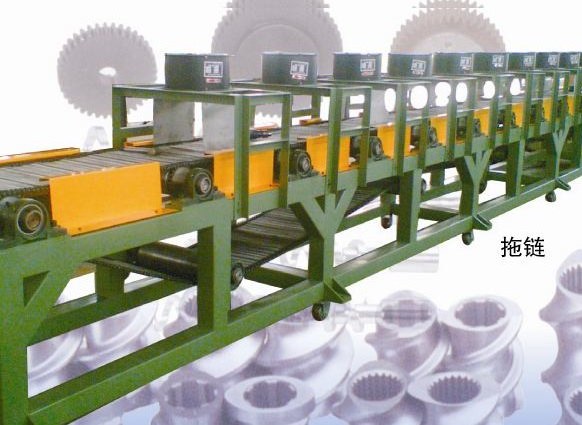

| Air-cooled conveyor chain | Dry cooling for strands that must not contact water |

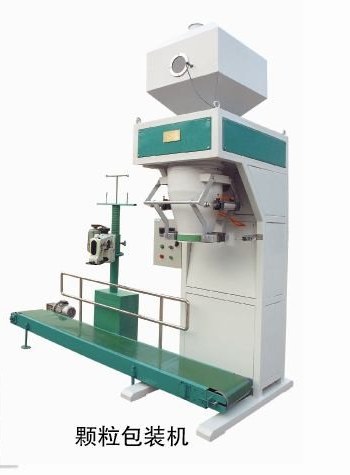

| Pellet packing machine | Weighing and bagging at the end of the line |
We also provide technology consulting, technical service and equipment reformation for the engineering-plastics industry — including upgrading existing extruders with new screw configurations, feeders or control systems.
